Quick Details

  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Contrastech
  • Model Number: Mars1300-210UC
  • Type: Digital Camera
  • Style: Mini Camera
  • Sensor: CMOS, PYTHON 1300 Global Shutter CMOS
  • Technology: NetWork
  • Special Features: USB 3.0 HD Camera
  • Resolution: 1280x1024
  • Exposure: Global Shutter
  • Format Size: 1/2"
  • Pixel Size: 4.8μm
  • Frame rate: 210 fps
  • Output Color: Color
  • Lens Interface: C-mount
  • Interface: USB 3.0
  • Dimension(LxWxH): 29.0x29.0x29.0mm

Packaging & Delivery

Packaging Details Each unit in a Anti Static Bag generally, then put into carton.

Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

Product Description

Mars Series industrial Camera is the latest developed products by ContrasTech in 2016 with high resolution and high acquiring speed. It is the best choice for high stability and high controllability machine vision application. Mars series Area scan industrial camera with Onsemi Python series and Sony advanced industrial image sensor are all equipped with rolling shutter and global shutter technology, which can be easily compared with CCD sensor. Multiple resolutions from 0.3 megapixels to 6 megapixels can meet various visual application requirements. Mars series industrial camera distinguishes itself by superior image quality, high frame rate and high resolution.



Mars series industrial camera follows Gigabit Ethernet and USB data bus standard, supports GenICam ™ and GigE Vision®, seamlessly connects HALCON, Vision Pro and other third-party software without secondary development.



At the same time, Mars series industrial camera provides SDK for Windows and Linux, covers a variety of popular developmental languages. And we have professional engineers to provide a best service for the development.

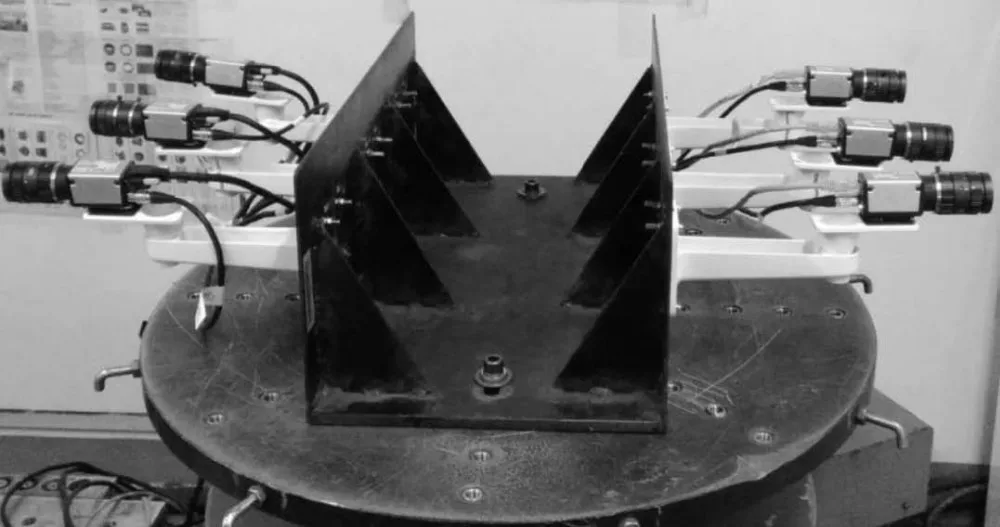

Reliability Test:

  • 24 Hours 3G Shock Test
  • 2 Weeks -40~60℃ High and Low emperature Reciprocating Test
  • 6kV Electrostatic Discharge Test of Metal Shell
  • 1kV Common Mode/0.5kV POE Power Surge Test
  • Class A Standard EMC Test
  • 1000mm Free Fall Test

Features:
  • Support GenICam ™ and GigE Vision® Standard
  • Compact Design, Save Installation Space
  • Hard Industrial Shell Design
  • Built-in Temperature, Power Supply Real-time Monitoring Sensor
  • Professional SDK Provided

Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

Model Explanation

Model

Mars640-815UM

Mars640-815UC

Mars800-545UM

Mars800-545UC

Mars1300-210UM

Mars1300-210UC

Max Resolution

640×480

800×600

1280×1024

Sensor Type

PYTHON 300

PYTHON 500

PYTHON 1300

Format

1/4"

1/3.6''

1/2"

Pixel Size(μm)

4.8×4.8

Dynamic Range

60dB

Frame Rate

815fps

545fps

210fps

Color Catagory

Mono/Color

Data Bits

8bit / 10bit

Exposure Mode

Global Shutter

Output Interface

USB3.0

Exposure Time

16μs~1s

SNR

>38dB

Lens Mount

Standard C-Mount

Power Input

USB

Power Consumption

3.5W

Hardware Control

I/O input (external trigger), I/O output, Opto-couplers Isolation

Programmable Control

Image Resolution, RGB gain, Exposure Time, Contrast, Gamma Chart, Image Rollover, Raw,LUT,

Black Level Correction

Operating System

Support Windows 2000/ XP/7/8/ 10; Support 32-bit and 64-bit Arm/Linux

Operating Temperature

-30~80℃(Storage), -30~50℃(Working)

Dimension

29.0 mm × 29.0 mm × 29.0 mm  (60g)





Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

Major Application

Various detection, measurement, high-speed imaging and other fields of applications

  • Mobile phone screen detection
  • LED automatic encapsulation
  • Defect detection
  • Electronic components manufacturing
  • Wafer positioning applications



Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

Product Dimension



Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

Product Display





Mars1300-210UC Supports GenICam 1280x1024 C mount USB 3.0 HD Camera

SDK

  • Support Mars whole series industrial camera products
  • Simple and Rapid Secondary Development
  • GigE Vision & USB3 Vision
  • SDK (C++)
  • iCentral Setup and Preview Tools
  • Windows / Linux (32bit / 64bit)
  • Follow GenICam ™ Standard
  • Optimized Package, Compact Interface, More Simple Development
  • GigE Vision and USB3 Vision High Performance Drivers
  • Strong Protocol Layer Plug-in Unit,More Convenient to Extend
  • iCentral Friendly Setup and Preview Interface
